CODING SWITCH 編碼開關

RS-05 series
RS-05 series
RS-05 series
NEW MINI ROTARY DIP SWITCHES

RS-05 series

10.00mm*10.00mm 迷你旋转编码开关 FEATURE ‧10.00mm*10.00mm ‧Horizontal DIP ‧0-3, 0-F Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

DIMENSIONS

Unit:mm


Unit:mm

Unit:mm

ModelDimensions

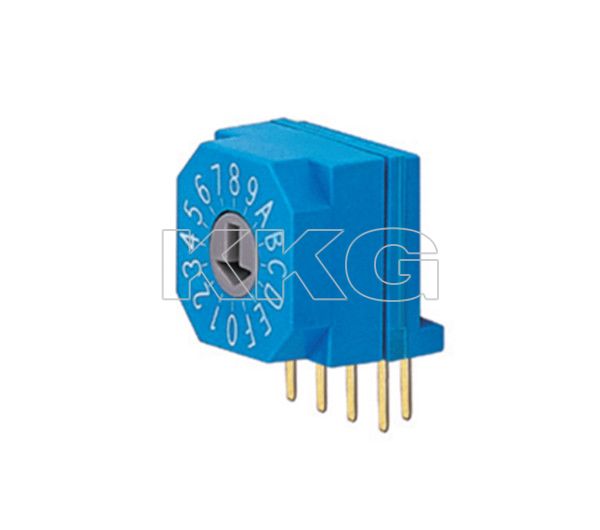

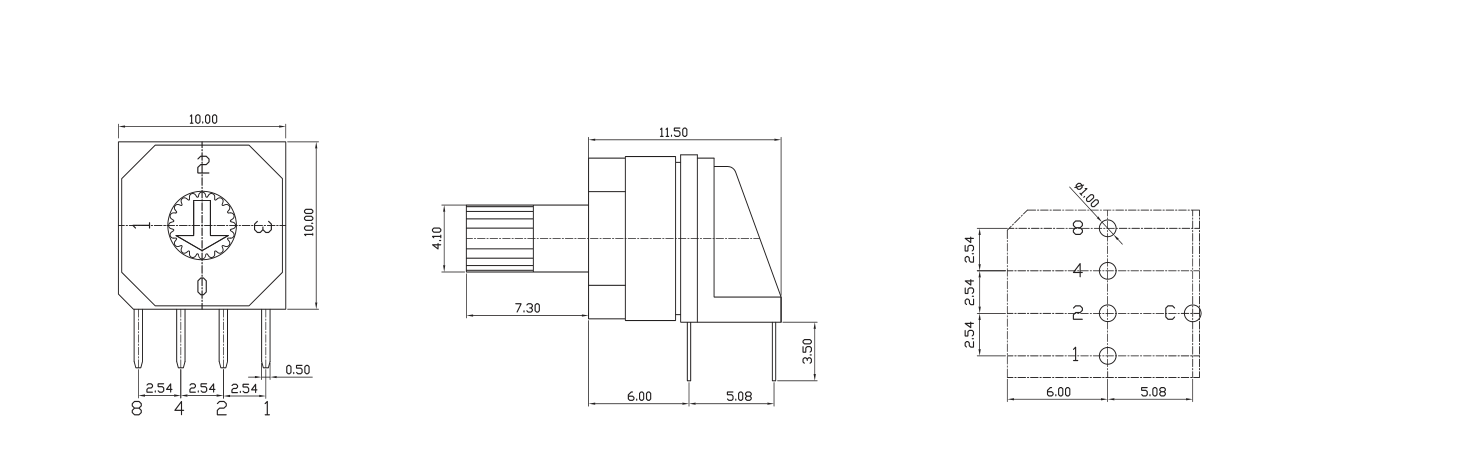

RS-05-01RS-05 series

RS-05 series


ModelDimensions

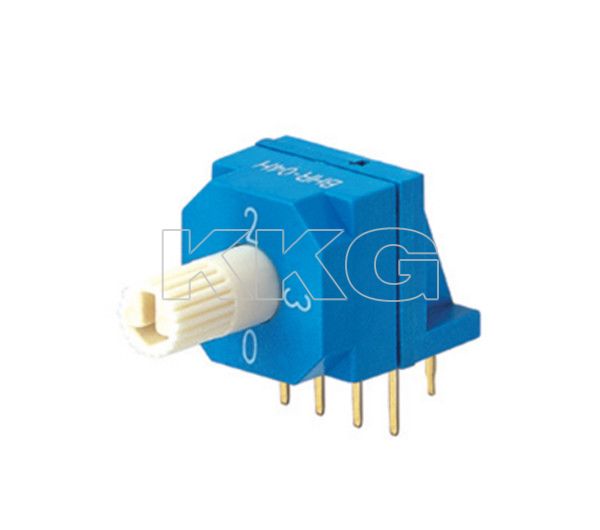

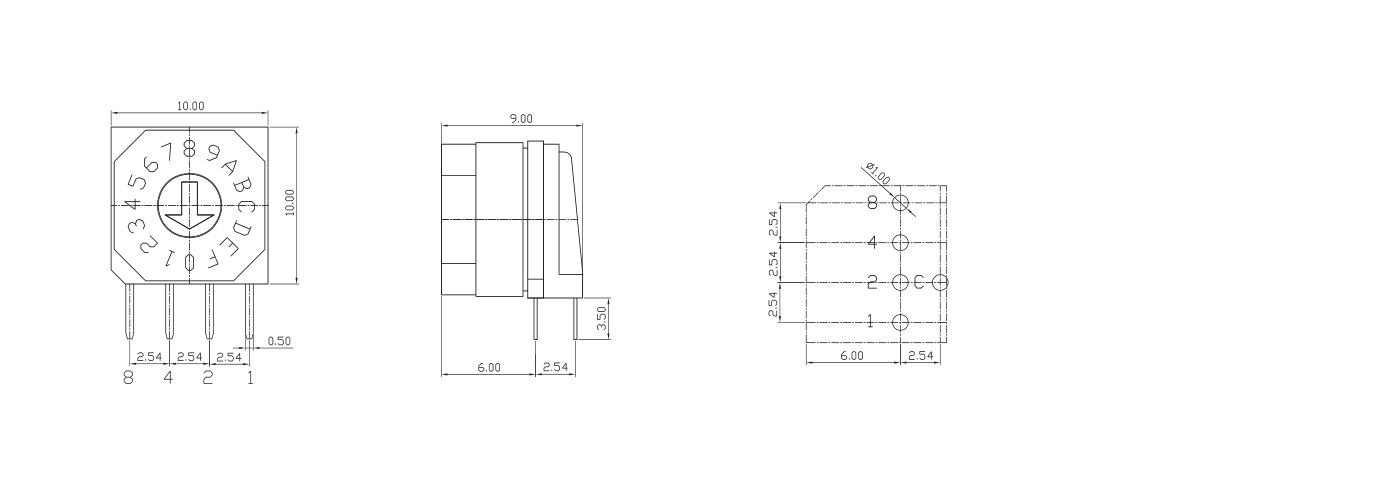

RS-05-02RS-05 series

RS-05 series
