CODING SWITCH 編碼開關

RS-09 series
RS-09 series
RS-09 series

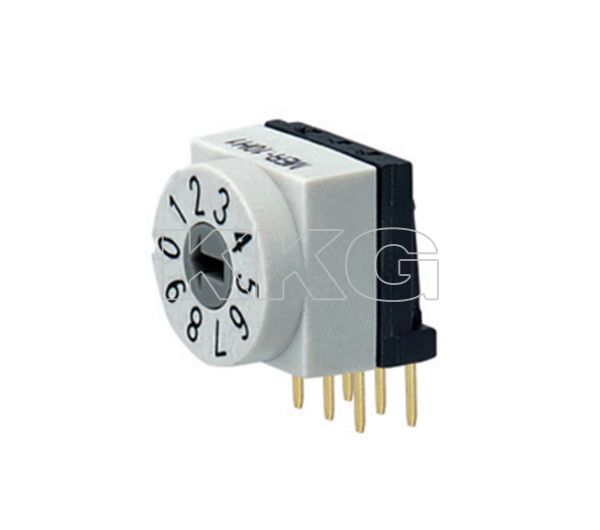

NEW MINI ROTARY DIP SWITCHES

RS-09 series

10.00mm*10.00mm 迷你旋转编码开关 FEATURE ‧10.00mm*10.00mm ‧Horizontal DIP ‧0-9,0-F Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

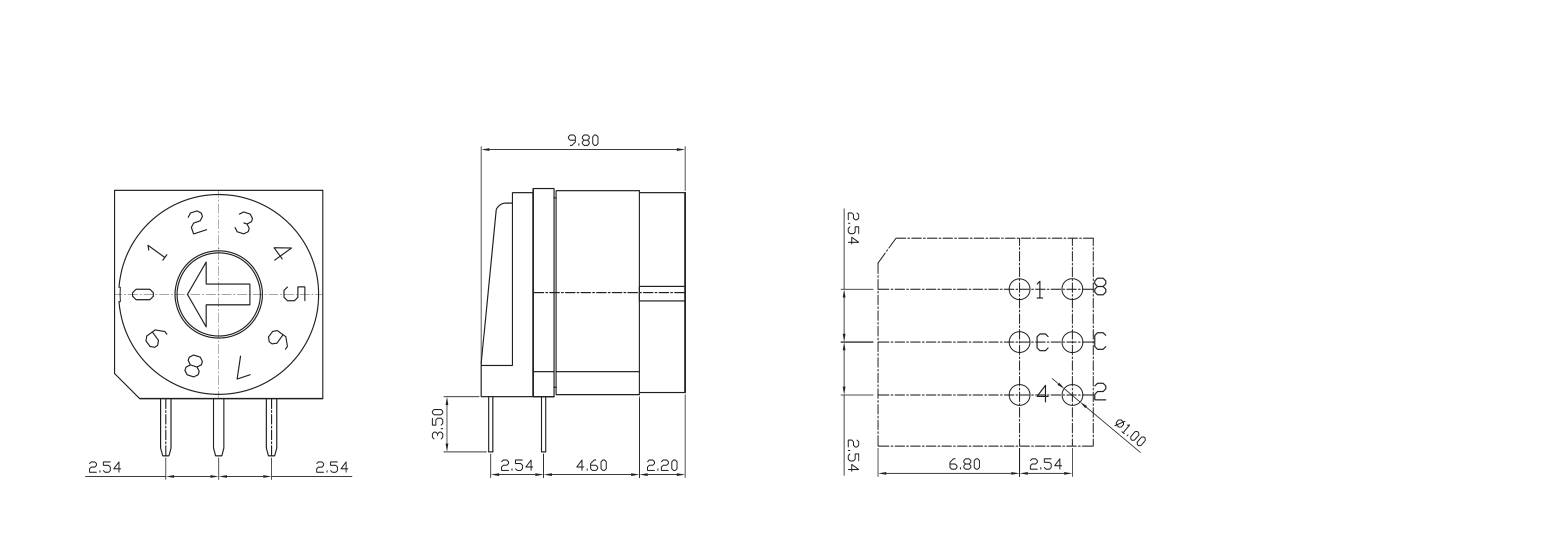

DIMENSIONS

Unit:mm

ModelDimensions




RS-09-01RS-09 series





RS-09 series

Unit:mm


Unit:mm

ModelDimensions

RS-09-02RS-09 series



RS-09 series
