CODING SWITCH 編碼開關

RS-11 series
RS-11 series
RS-11 series
NEW MINI ROTARY DIP SWITCHES

RS-11 series

10.00mm*10.00mm 迷你旋转编码开关 FEATURE ‧10.00mm*10.00mm ‧Vertical SMD ‧0-3, 0-F Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

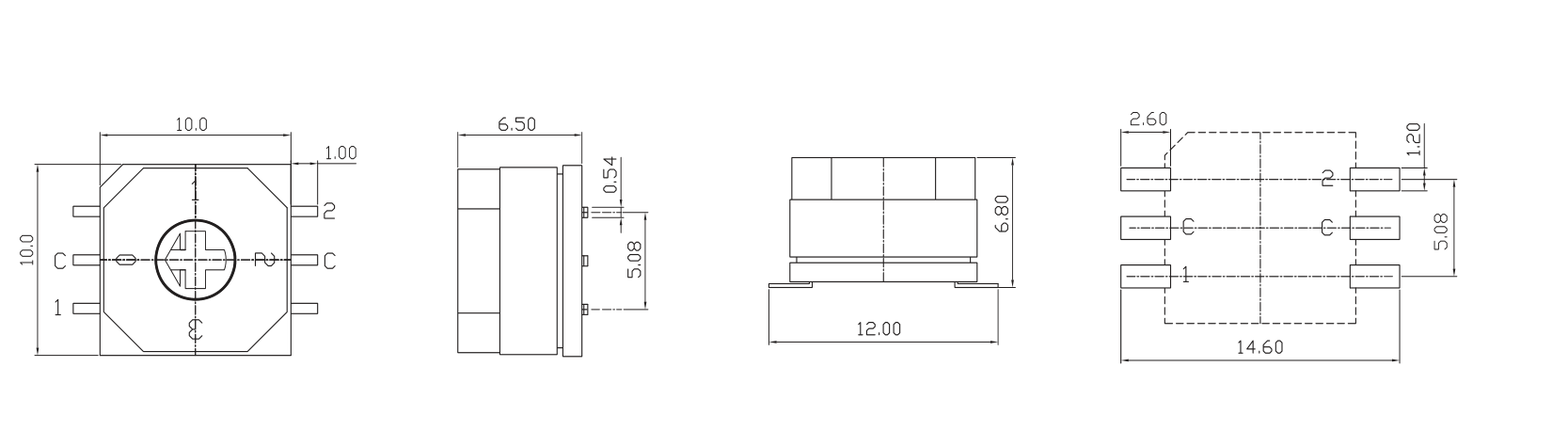

DIMENSIONS

Unit:mm


Unit:mm

Unit:mm

ModelDimensions

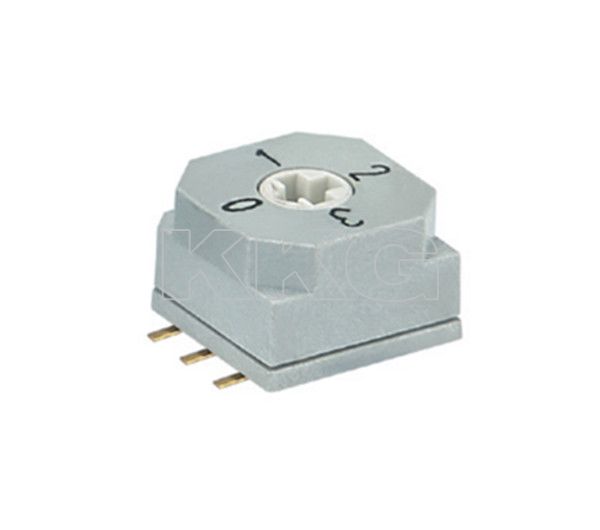

RS-11-01RS-11 series

RS-11 series


ModelDimensions

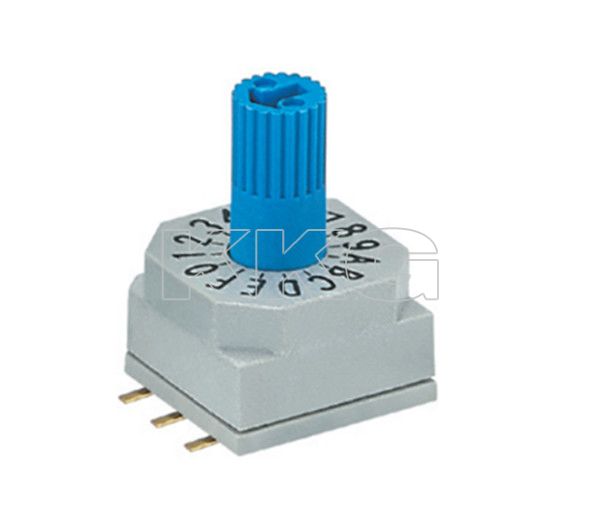

RS-11-02RS-11 series

RS-11 series
