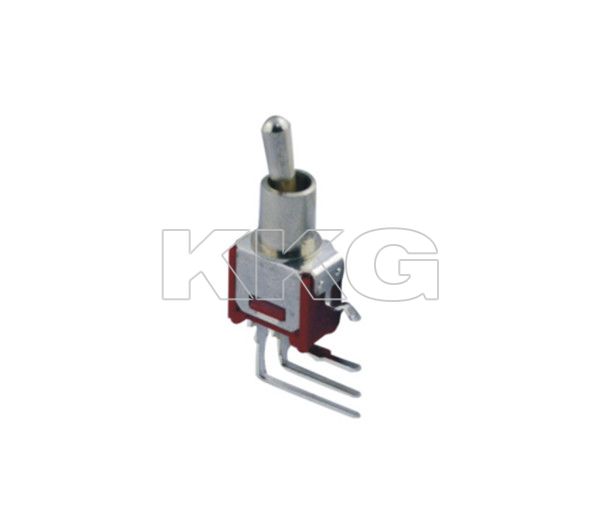

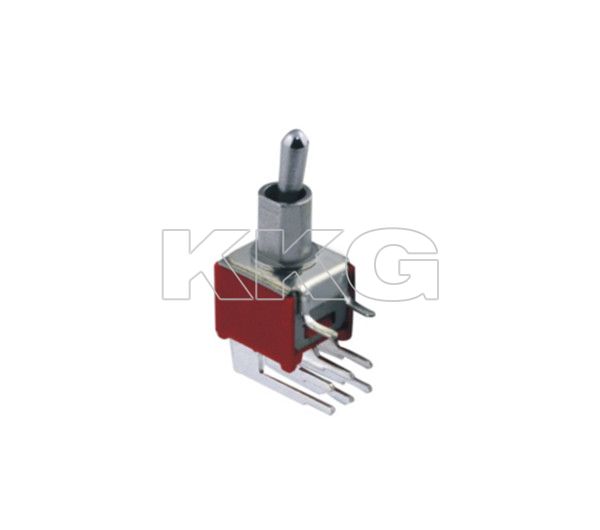

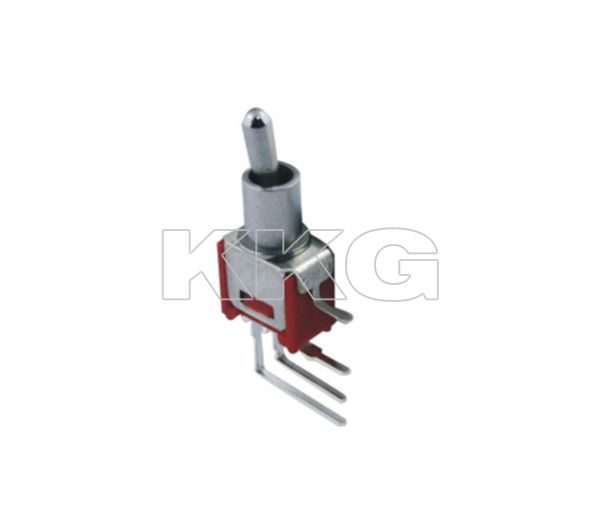

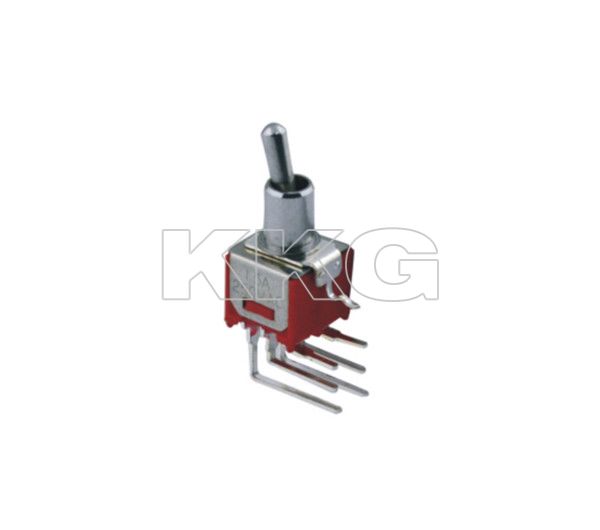

TG-ST02 series

卧式DIP 鈕子開關 FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
Contact resistance	＜20mΩ
Insulation resistance	500VDC≥1000MΩ
Withstand voltage	1000VAC
Electrical life	1,0000 cycles
Mechanical life	4,0000 cycles
Operating temperature	-25°C to 85°C.
