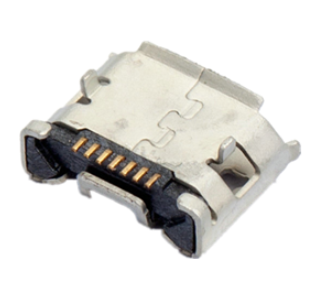

MICRO USB SOCKET Micro/Mini USB

USB-MK003XB
Micro/Mini USB JACK SERIES

USB-MK003XB

MICRO USB B型沈板0.8 帶接地片 FEATURE ‧ 5.00mm*7.40mm ‧ 90 degrees SMD ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating0.5A/contact terminal
额定电压/Voltage Rating30V DC
接触电阻/Contact Resistance30MΩ
尺寸/Dimension5.00mm*7.40mm
电压/Dielectric Withstabding Voltage250V DC
绝缘电阻/Insulation Resistance100MΩ min

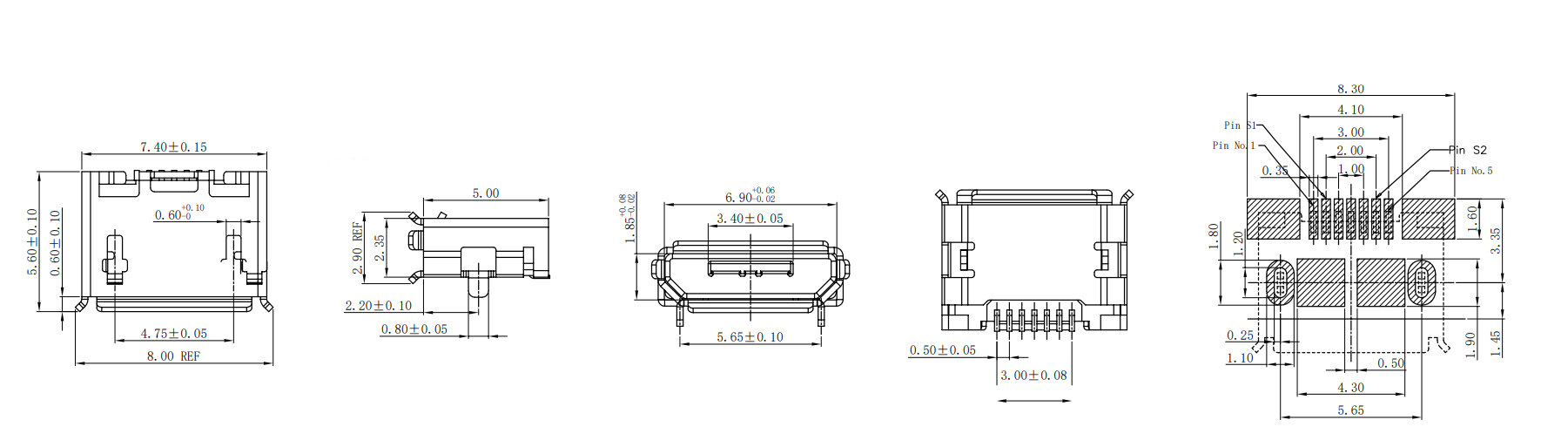

DIMENSIONS

Unit:mm

ModelDimensions

USB-MK003XBUSB-MK003XB

USB-MK003XB

Unit:mm


Unit:mm
