MICRO USB SOCKET Micro/Mini USB

USB-MD008G
Micro/Mini USB JACK SERIES

USB-MD008G

MICRO usb 5PF 直插180度 FEATURE ‧ 5.00mm*6.90mm ‧ 180 degrees DIP ‧ Wave soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating1.5A ,1.8A/contact terminal
额定电压/Voltage Rating30V DC
接触电阻/Contact Resistance30MΩ
尺寸/Dimension5.00mm*6.90mm
电压/Dielectric Withstabding Voltage100V DC
绝缘电阻/Insulation Resistance100MΩ min

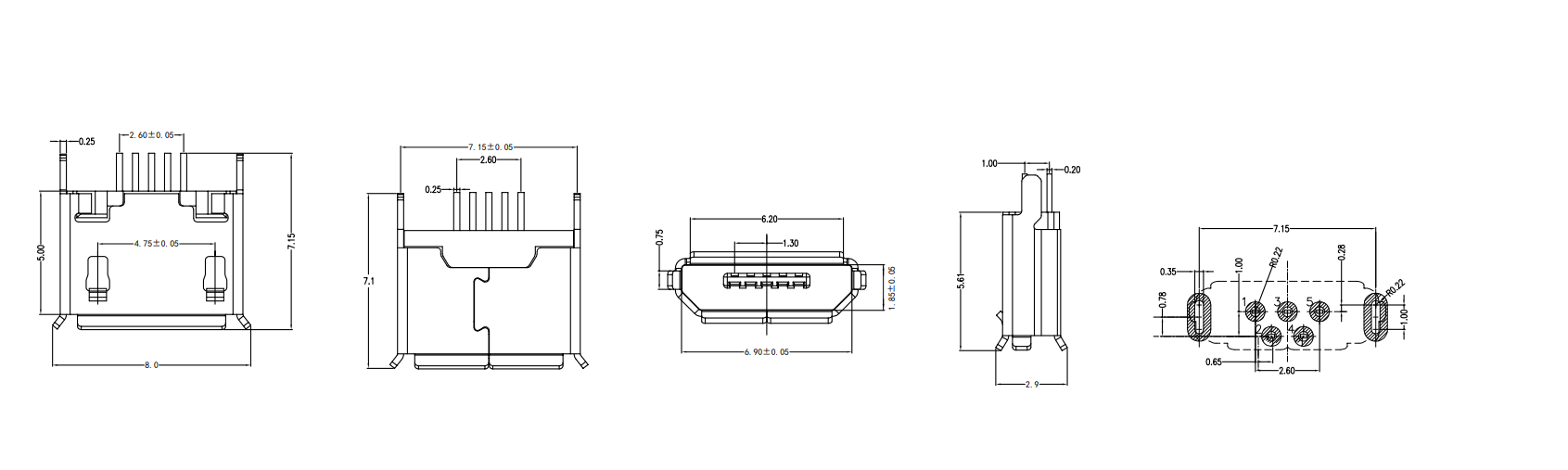

DIMENSIONS

Unit:mm

ModelDimensions

USB-MD008GUSB-MD008G

USB-MD008G

Unit:mm


Unit:mm
