MULTI-FUNCTION SWITCH 多功能開關

TM-4175
5-position Navigation Switch

TM-4175

贴片五向開關 FEATURE ‧ 7.40mm*7.40mm ‧ 4 directions + middle press ‧ SMD installation APPLICATIONS ‧ Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定值/RatingDC12V,50mA Max
接触电阻/Contact Resistance500mз Max
中心推操作力/Center Push  Operating Force260±70gf
中心推行程/Center Push Stroke0.15±0.1mm
四方向行程/4-Way Direction Stroke0.2±0.1mm
四方向操作力/4-Way Direction Operating Force 160±30gf
壽命/Life Cycles50,000

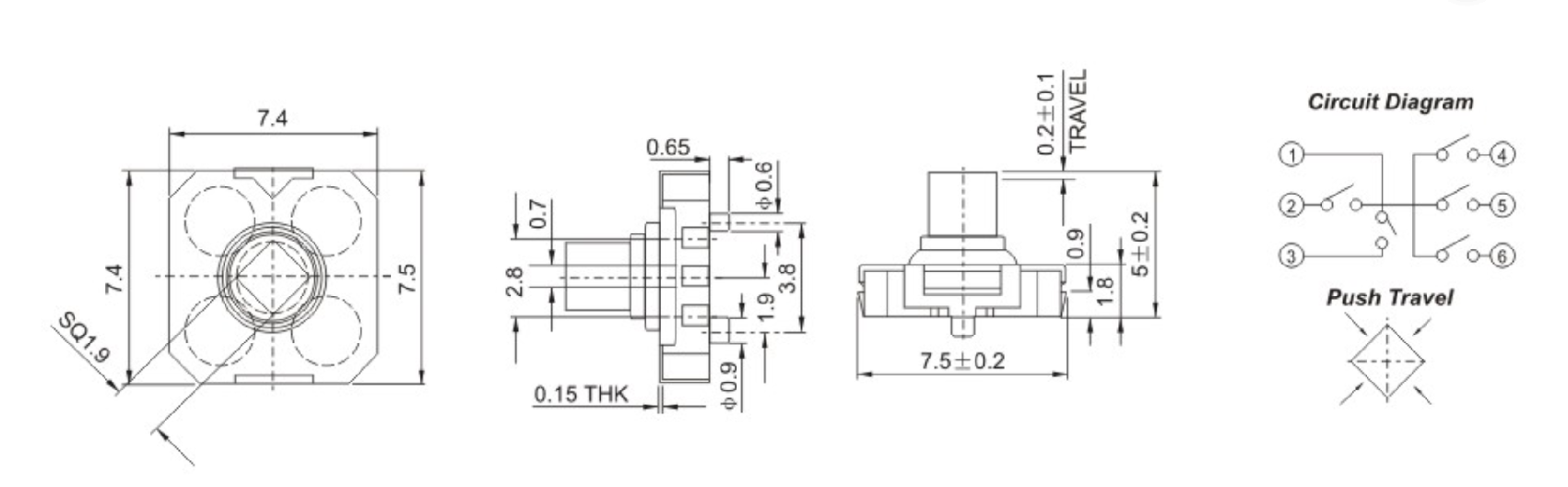

DIMENSIONS

Unit:mm

ModelDimensions

TM-4175TM-4175

TM-4175

Unit:mm


Unit:mm
