MULTI-FUNCTION SWITCH 多功能開關

TM-1511
Multi-function rotary switch

TM-1511

Multi-function rotary switch FEATURE ‧ 17.70mm*11.80mm ‧ SMD installation APPLICATIONS ‧ Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定值/RatingDC 10V 1MA MAX
制作行程/Detent(Pulse) Travel0.3MM
接触电阻/Contact Resistance100mΩMax
壽命/Life Cycles100000 Cycles

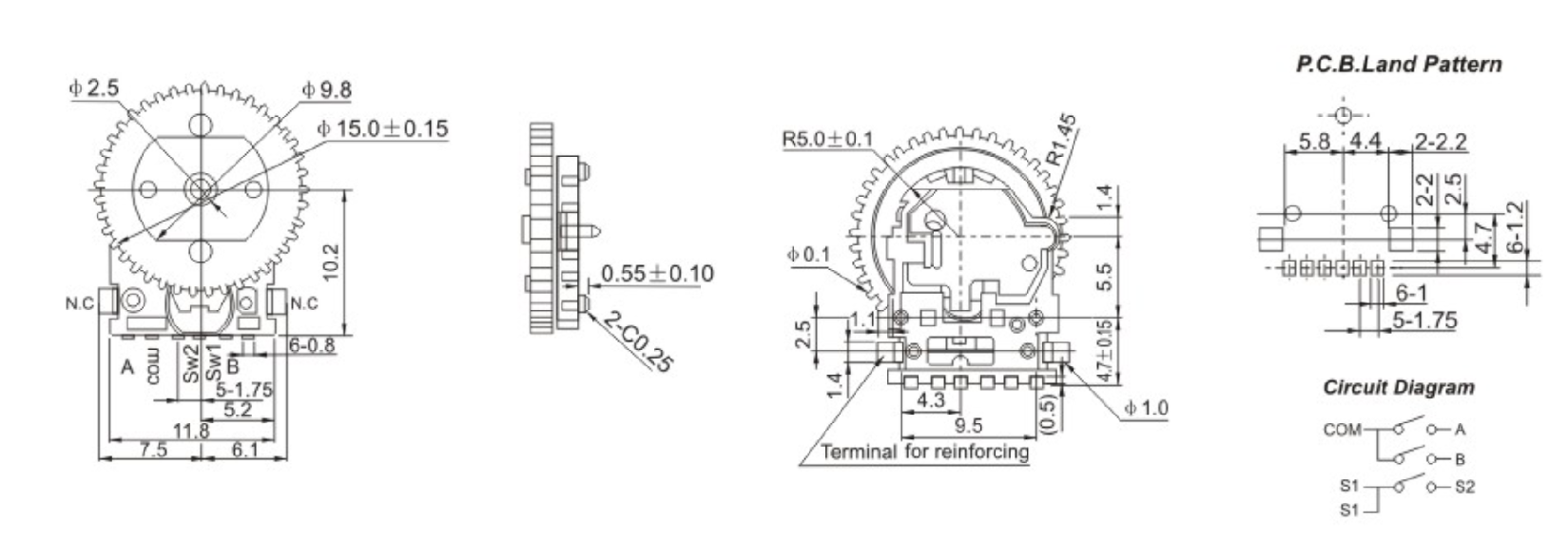

DIMENSIONS

Unit:mm

ModelDimensions

TM-1511TM-1511

TM-1511

Unit:mm


Unit:mm
