MULTI-FUNCTION SWITCH 多功能開關

TM-1085
Joystick potentiometer

TM-1085

操縱桿電位器 FEATURE ‧ 17.95mm*17.70mm ‧ Slide on the 2D flat ‧ Integrated tact switch APPLICATIONS ‧ Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
全阻值/Total resistance5KA~100KA
额定功率/Rated power0.0125W
工作电流/Working current100MA DC250V
滑柄行程/Slide stroke2mm
操作力距/Operating torque120±50gf
寿命/life500000 Times

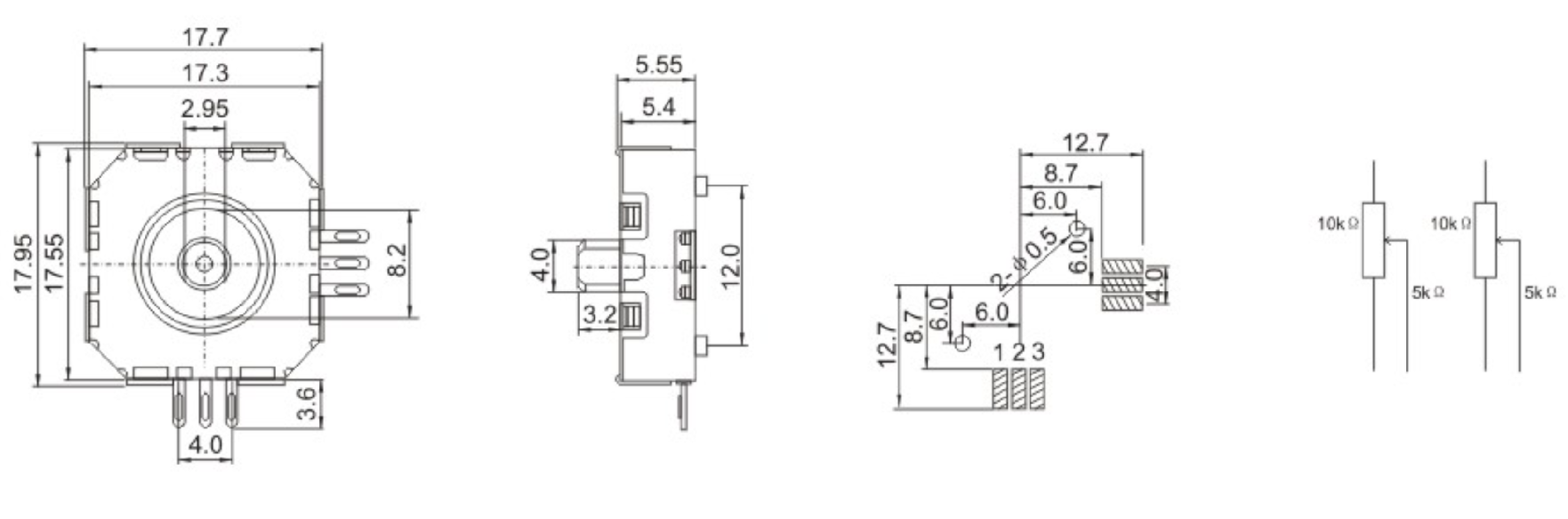

DIMENSIONS

Unit:mm

ModelDimensions

TM-1085TM-1085

TM-1085
