MULTI-FUNCTION SWITCH 多功能開關

TM-2118
Joystick potentiometer

TM-2118

操縱桿電位器 FEATURE ‧ 21.00mm*18.50mm ‧ Slide on the 2D flat ‧ Integrated tact switch APPLICATIONS ‧ Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
全阻值/Total resistance5KA~100KA
额定功率/Rated power0.0125W
工作电流/Working current50MA DC12V
滑柄行程/Slide stroke0.5+0.5/-0.4mm
操作力距/Operating torque120±40gf
寿命/life2000000 Times

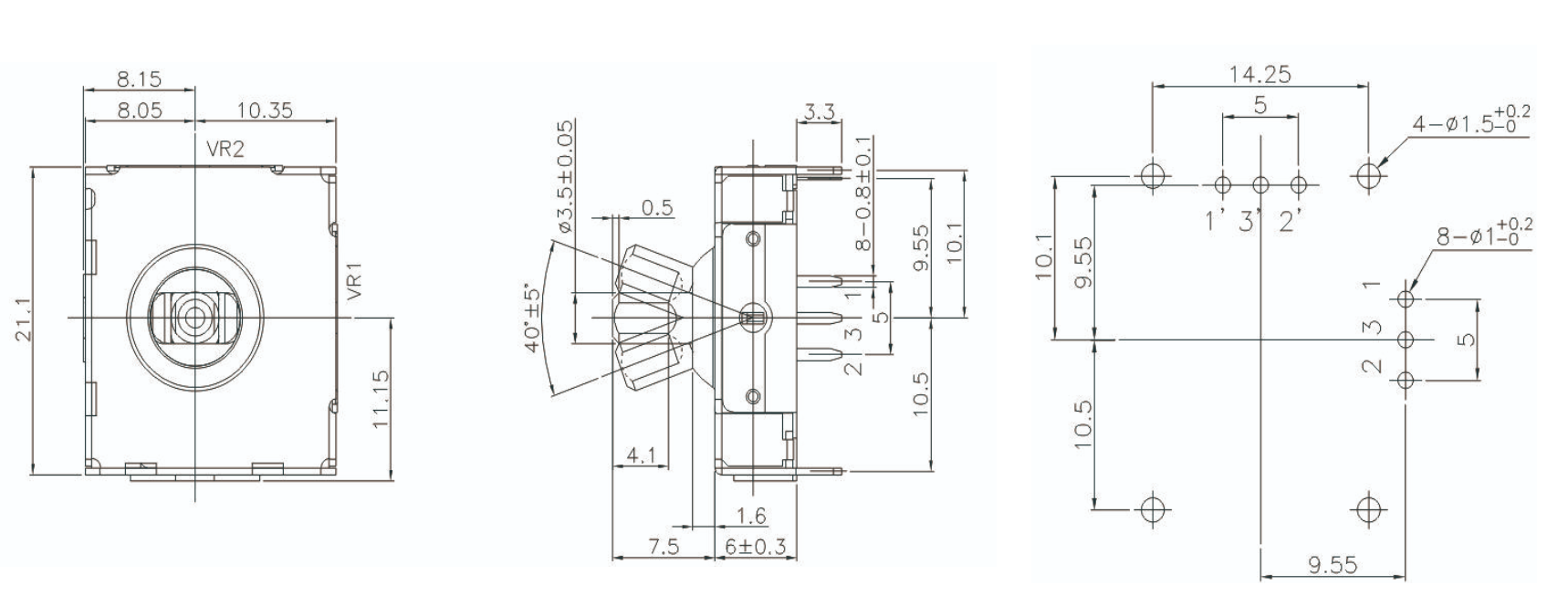

DIMENSIONS

Unit:mm

ModelDimensions

TM-2118TM-2118

TM-2118
