DIP SWITCH 撥碼開關

DIP-DM series
DIP SWITCH SERIES

DIP-DM series

撥碼開關 FEATURE ‧Pitch 2.54mm ‧Piano Type , Long Key ‧1~10 , 12 positions APPLICATIONS ‧Digital drama processing, communication, remote control and anti-theft, automatic alarm system, air shower room, model train


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
額定值/Rating25mA 24V
引腳間距/PIN Pitch2.54mm
操作力/Operation Force1000gf max
介電強度/Dielectric StrengthAC 500 V minute
絕緣電阻/Insulation Resistance100 MΩ Mim 500V DC
接觸電阻/Contact Resistance50MΩ
工作溫度/Operating Temperature-40° ~ +85°

 壽命/ Life

2,000 Operations

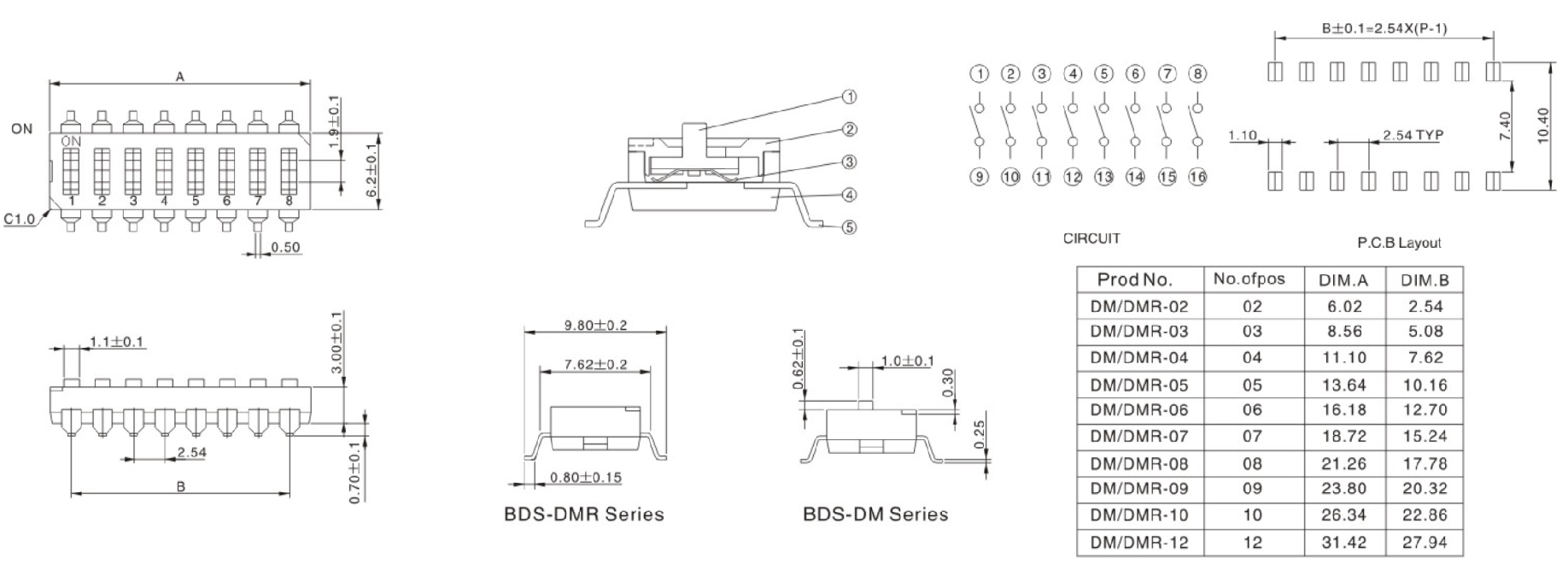

DIMENSIONS

Unit:mm



ModelDimensions

DIP-DMDIP-DM series

DIP-DM series
