MULTI-FUNCTION SWITCH 多功能開關

TM-2101
Multi-function rotary switch

TM-2101

旋轉開關 FEATURE ‧ Φ21.00mm ‧ Rotate + middle press ‧ DIP installation APPLICATIONS ‧ Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
操作力/Operating force220±40 gf
工作頻率(電氣)/Operating frequency(electrical)Push-120/mim
接觸電阻/Contact resistance300m Ω
使用壽命(電氣)/Service life(electrical)1000000
工作電流/Working current1mA 10VDC

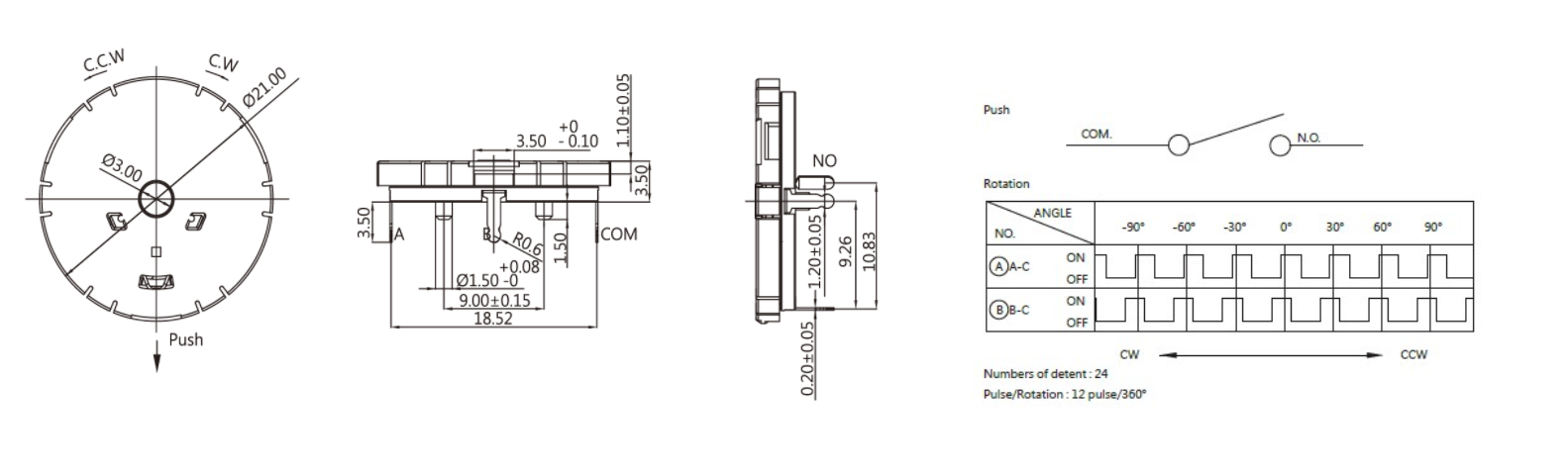

DIMENSIONS

Unit:mm

ModelDimensions

TM-2101TM-2101

TM-2101


Unit:mm



Unit:mm

Unit:mm
