防水USB插座

USBC-1100A-C165-WP
USB 3.1Waterproof TYPE-C Connector

USBC-1100A-C165-WP

防水TYPE-C IP67 FEATURE ‧ 14.60mm*9.08mm ‧ 90 degrees SMD ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension14.60mm*9.08mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

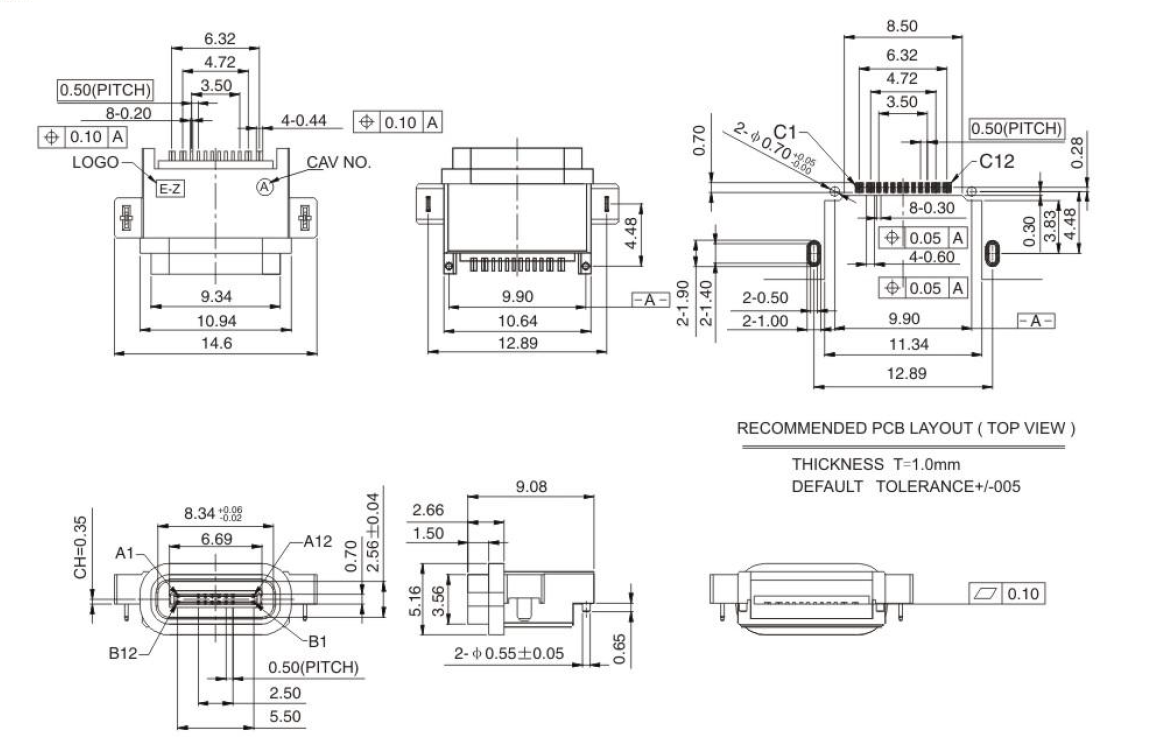

DIMENSIONS

Unit:mm

ModelDimensions

USBC-1100A-C165-WPUSBC-1100A-C165-WP

USBC-1100A-C165-WP

Unit:mm

Unit:mm
