防水USB插座

USBC-1103A
USB 3.1Waterproof TYPE-C Connector

USBC-1103A

防水TYPE-C IP67 FEATURE ‧ 19.56mm*5.06mm ‧ 90 degrees SMD ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension19.56mm*5.06mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

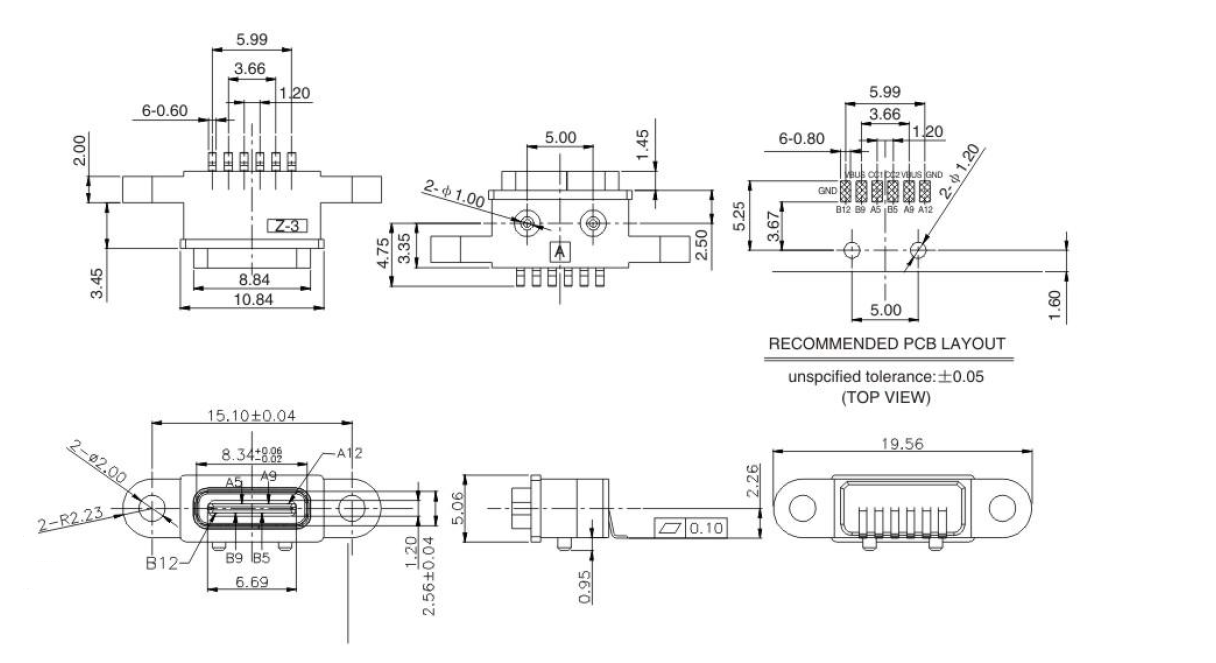

DIMENSIONS

Unit:mm

ModelDimensions

USBC-1103USBC-1103A

USBC-1103A

Unit:mm

Unit:mm
