ø6.35耳機插座

PJ-6355
6.35 mm aperture DIP horizontal audio phone jack

PJ-6355

6.35mm孔徑/插件式耳機插座 FEATURE ‧ 31.00mm*18.00mm ‧ Horizontal DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電氣額定值/Rating0.5A,30V
操作力/Operating Force3~30N
尺寸/Dimension31.00mm*18.00mm
電氣壽命/Electrical Life5,000 Cycles Min
絕緣強度/Dielectric StrengthAC500V
接触电阻/Contact Resistance
50mΩ Max

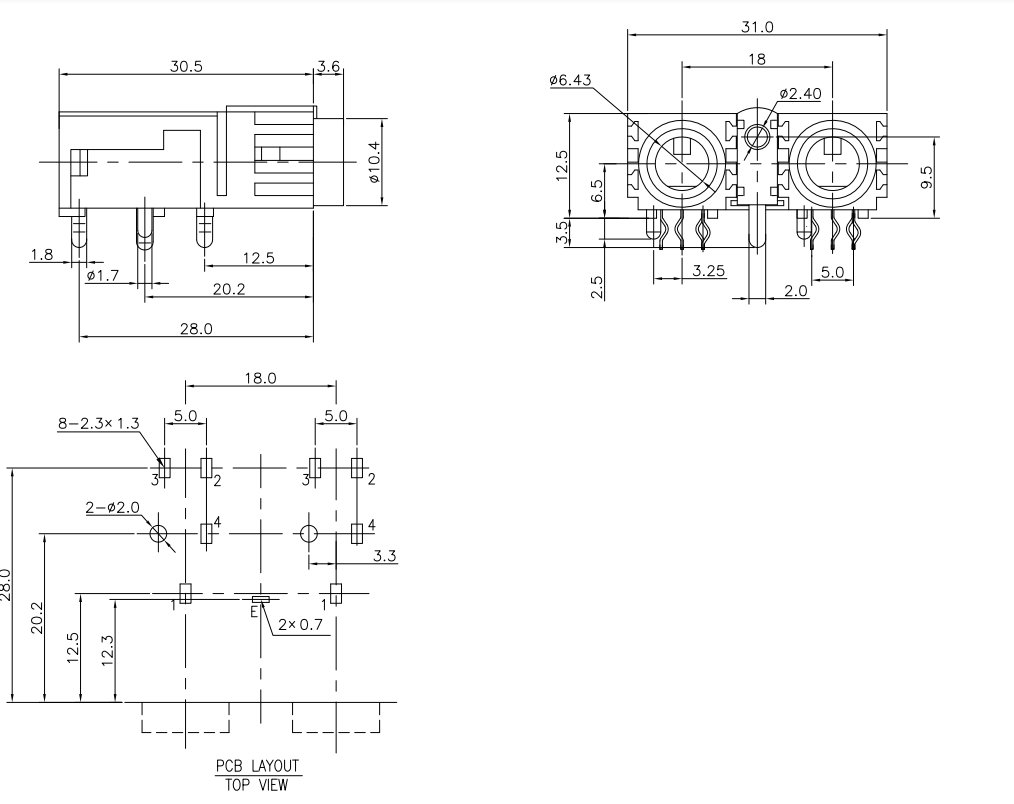

DIMENSIONS

ModelDimensions

PJ-6355PJ-6355

PJ-6355
