防水耳机插座

PJ-9465
3.5 mm aperture horizontal audio phone jack

PJ-9465

3.5mm孔徑/防水耳機插座 FEATURE ‧ 14.30mm*7.95mm ‧ Horizontal SMD ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
電氣額定值/Rating0.5A,30V
操作力/Operating Force3~30N
尺寸/Dimension

14.30mm*7.95mm

電氣壽命/Electrical Life5,000 Cycles Min
絕緣強度/Dielectric StrengthAC500V
接触电阻/Contact Resistance
50mΩ Max

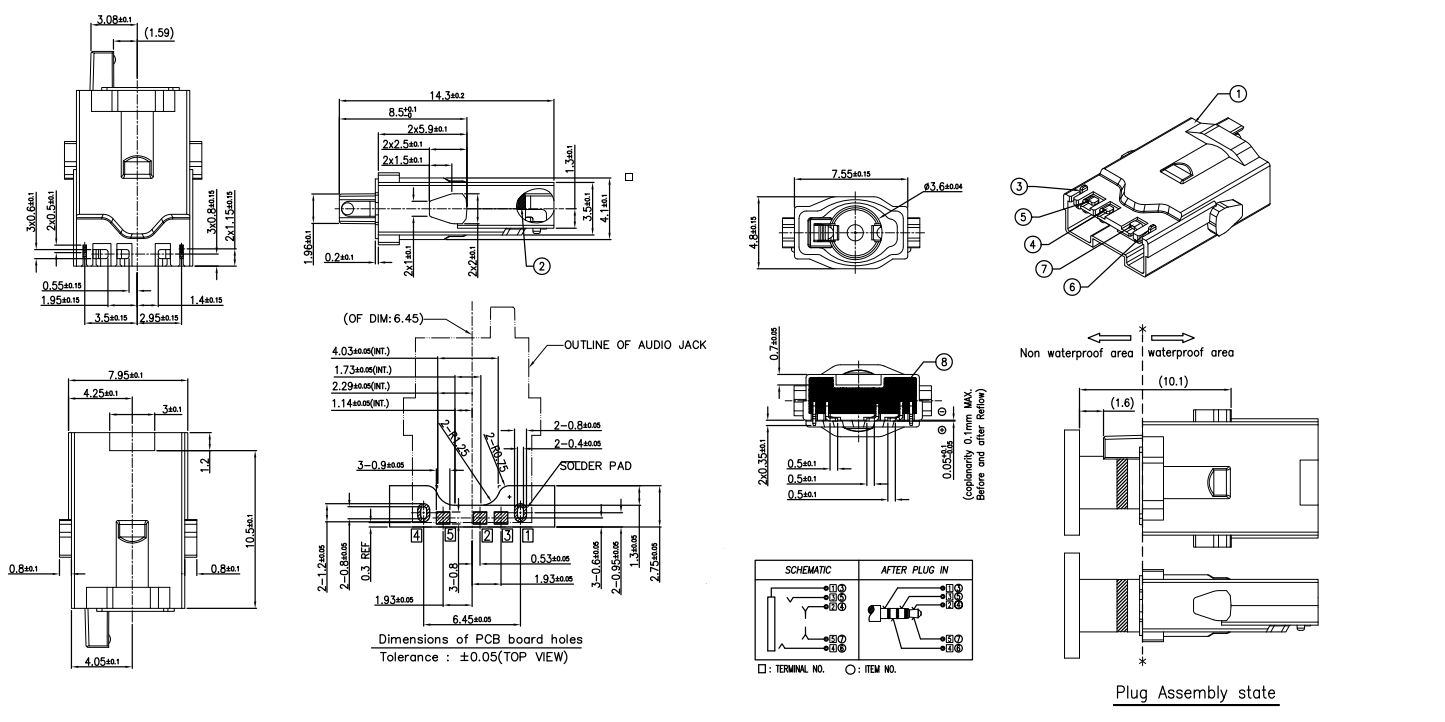

DIMENSIONS

ModelDimensions

PJ-9465PJ-9465

PJ-9465
