ROCKER SWITCH 翹板開關

PR-2115-D series
Multi-position rocker power switch

PR-2115-D series

翹板開關 FEATURE ‧ 21.00mm*15.00mm ‧ 2 gears ‧ Single row of feet APPLICATIONS ‧ Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
電流/Current6A 125VAC/3A 250VAC
接触电阻/Contact Resistance35MAX
操作溫度/Operating temperature-25℃+85℃
絕緣電阻/Insulation resistance500VDC 100MAX min
耐電壓/Withstand voltage1500VAC 1min
電器壽命/Electrical life10,000cycles



DIMENSIONS


ModelDimensions

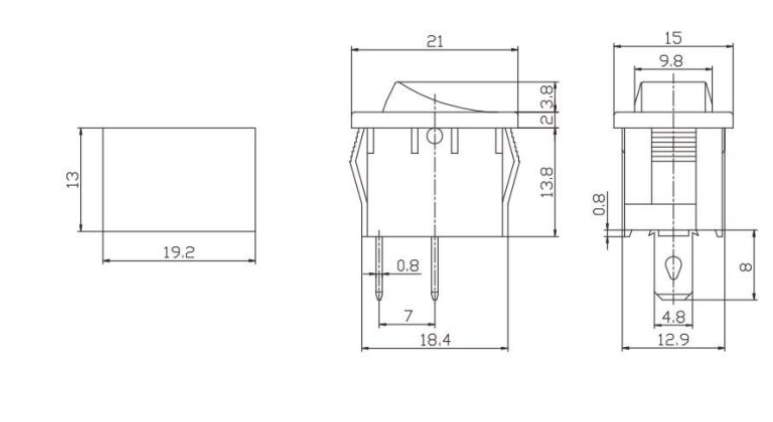

PR-2115-D-01PR-2115-D series

PR-2115-D series



DIMENSIONS


ModelDimensions

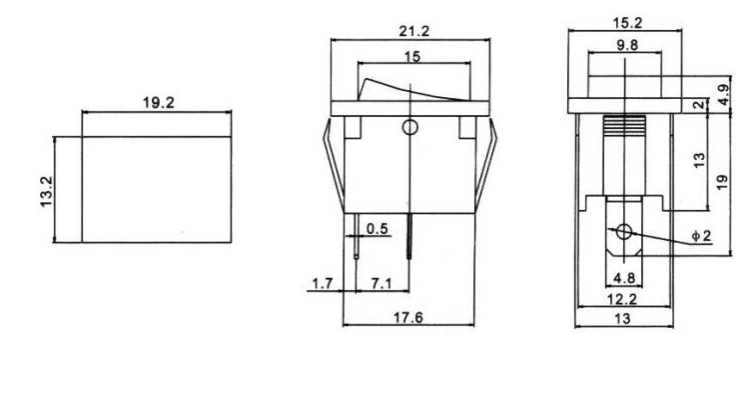

PR-2115-D-02PR-2115-D series

PR-2115-D series


DIMENSIONS

ModelDimensions

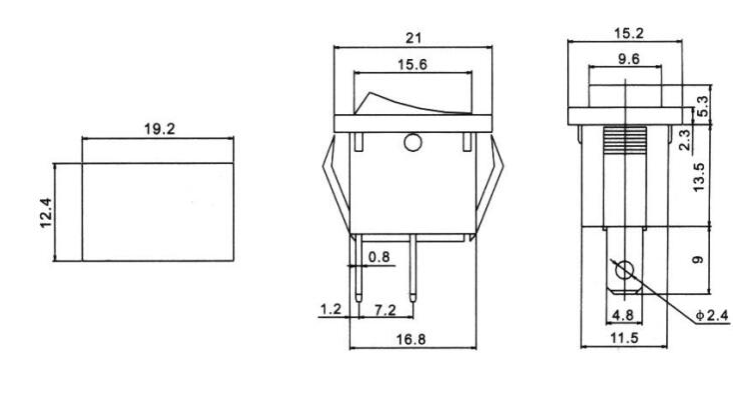

PR-2115-D-03PR-2115-D series

PR-2115-D series

DIMENSIONS

ModelDimensions

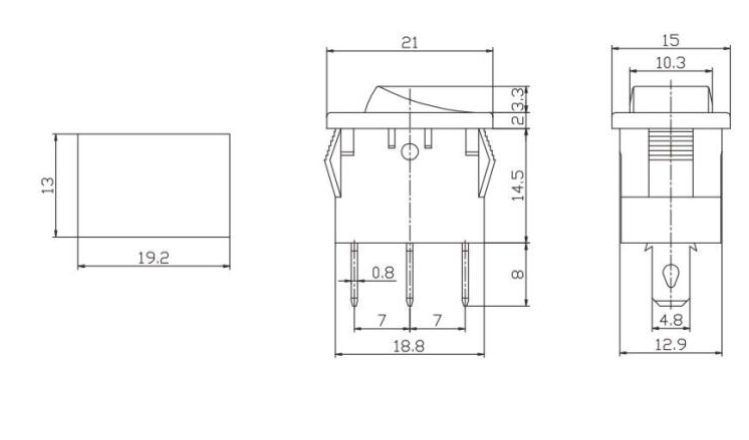

PR-2115-D-04PR-2115-D series

PR-2115-D series

DIMENSIONS

ModelDimensions

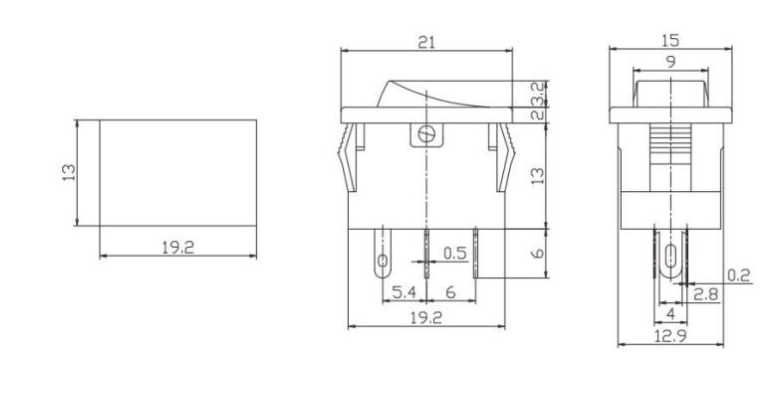

PR-2115-D-05PR-2115-D series

PR-2115-D series
