ROCKER SWITCH 翹板開關

PR-3013 series
Multi-position rocker power switch

PR-3013 series

翹板開關 FEATURE ‧ 30.50mm*13.50mm ‧ 2 gears ‧ Single row of feet APPLICATIONS ‧ Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
電流/Current20A 125VAC/15A 250VAC
接触电阻/Contact Resistance35MAX
操作溫度/Operating temperature-25℃+85℃
絕緣電阻/Insulation resistance500VDC 100MAX min
耐電壓/Withstand voltage1500VAC 1min
電器壽命/Electrical life10,000cycles

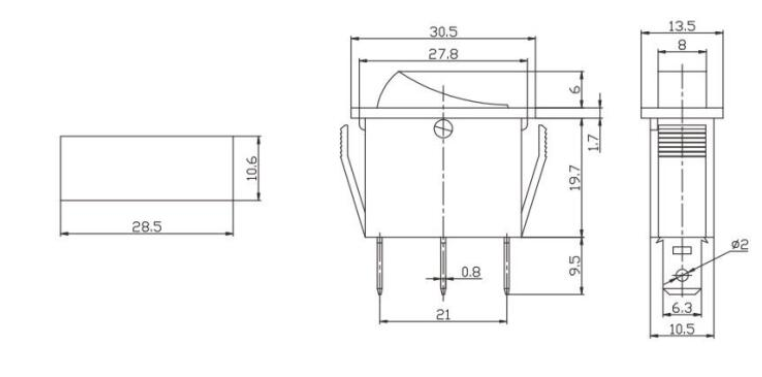

DIMENSIONS

ModelDimensions

PR-3013-01PR-3013 series

PR-3013 series

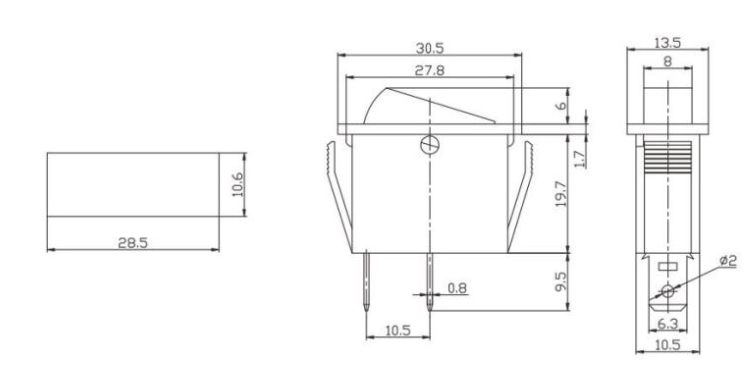

DIMENSIONS

ModelDimensions

PR-3013-02PR-3013 series

PR-3013 series

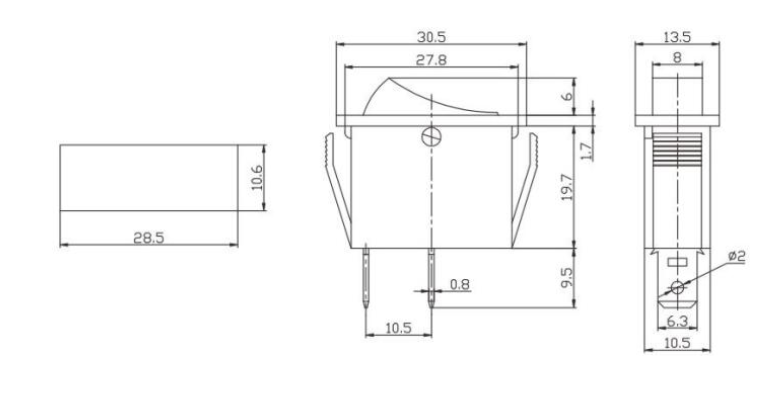

DIMENSIONS

ModelDimensions

PR-3013-03PR-3013 series

PR-3013 series

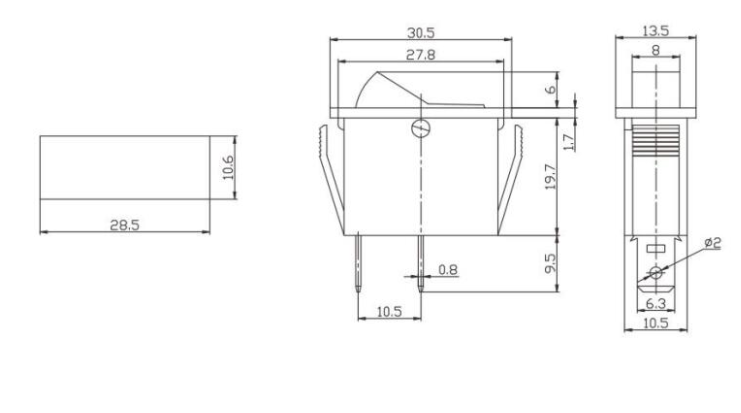

DIMENSIONS

ModelDimensions

PR-3013-04PR-3013 series

PR-3013 series

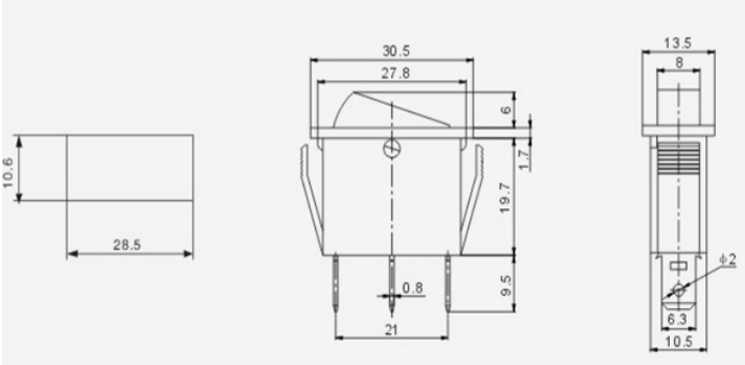

DIMENSIONS

ModelDimensions

PR-3013-05PR-3013 series

PR-3013 series

DIMENSIONS

ModelDimensions

PR-3013-06PR-3013 series

PR-3013 series
